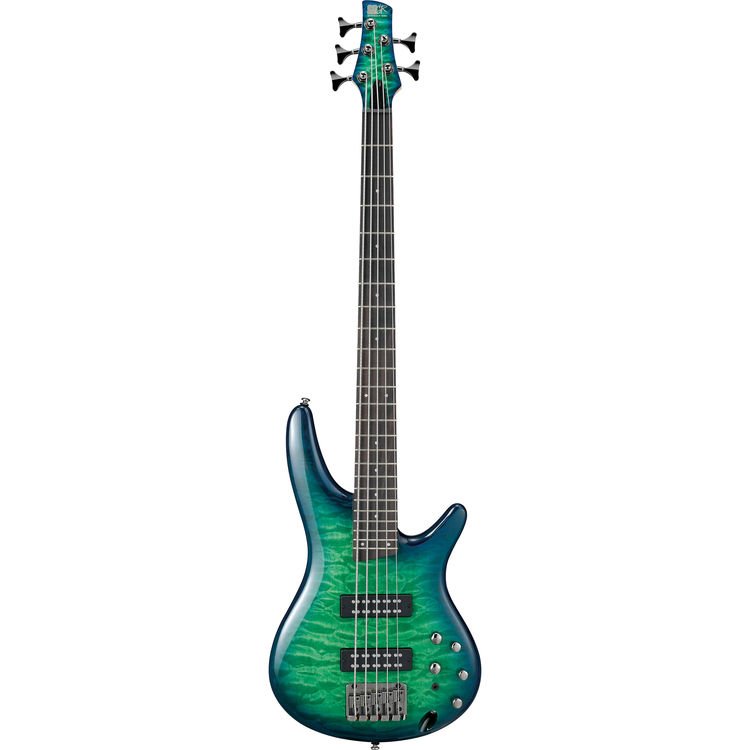

For 30 years the SR has given bass players a modern alternative. With its continued popularity, Ibanez is constantly endeavoring to answer the wider needs of a variety of players, at a variety of budgets. But no matter what the specs, the heart is the same-SR continues to excite with its smooth, fast neck, lightweight body, and perfectly matched electronics.
SPEC
| Neck type |
SR5 5pc Maple/Rosewood neck |
| Body |
Quilted Maple top/Mahogany body |
| Fretboard |
Rosewood fretboard w/White dot inlay |
| Fret |
Medium frets |
| Number of frets |
24 |
| Bridge |
Accu-cast B305 bridge (16.5mm string spacing) |
| Neck pickup |
PowerSpan Dual Coil neck pickup (Passive) |
| Bridge pickup |
PowerSpan Dual Coil bridge pickup (Passive) |
| Equalizer |
Ibanez Custom Electronics 3-band EQ w/3 way Power Tap switch |
| Factory tuning |
1G, 2D, 3A, 4E, 5B |
| String gauge |
.045/.065/.085/.105/.130 |
| Hardware color |
Cosmo black |
NECK DIMENSIONS
| Scale : |
864mm/34" |
| a : Width |
45mm at NUT |
| b : Width |
68mm at 24F |
| c : Thickness |
19.5mm at 1F |
| d : Thickness |
21.5mm at 12F |
| Radius : |
305mmR |
CONTROLS
FREQUENCY RESPONSE
